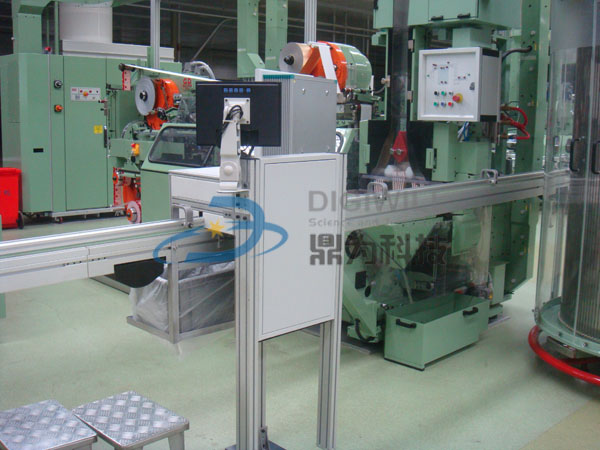

DGW-D500 cigarette packet appearance imaging detection system is based on machine vision equipment dedicated to online detection of cigarette packet appearance quality and sorting of my company independent research and development. Compared to the existing market package appearance detection device, the detection accuracy is greatly improved, the maintenance workload is reduced, the detection speed is improved greatly, make the package quality tobacco package guaranteed.

The main technical indexes and parameters

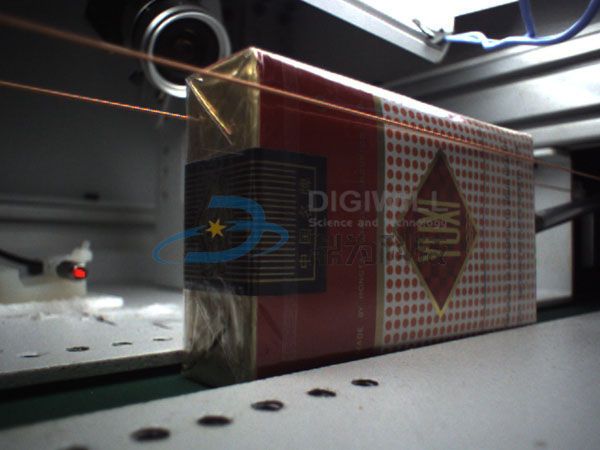

A, test items: simultaneous detection of tobacco packing breakage, become warped edge, flip, white, anti package, packing dislocation, seal online (offset, stack angle, deletion), bottom not angle, printing, pack up the unpainted, flip the large gap, small deformation, the following is not good phenomenon:
1, small the wrong card, shuffle: trademark logo and text printing wrong version or mixing with other brands of packaging format (a variety of cigarette brand confusion, excluding non shift production label format);
2, the anti bag, pack up, deformation, the tongue paper exposed, reflexed;
3, small flanking Alice side, white, reflexed;
4, small gap, a reflection cover;
5, small package paper damage, stains, color etc.;
6, the packet (soft) defects: top, sides and bottom seam glue, Alice side, white; seal Qiaojiao, skew, offset; double seal etc.;
7, small foil exposed;
8, small packets, packet turn off head;

Detection index:
1, the detection surface: 5 (except the bottom surface with contact and transmission)
2, the detection speed of >800 bags / minute;
3, store brand: no limit;
4, the detection points: no limit;
5, the detection precision: the detection accuracy of stains, foreign body was 2mm * 2mm; the detection accuracy of misalignment, offset up to 1mm; the general defect detection (B defect) accuracy rate reached 95%, a serious defect (a defect) reached 100%, false rejection rate below 0.1%;

Stable operation of DGW-D500 imaging detection system of cigarette packet appearance, low failure rate. In the detection process does not touch the cigarette package, eliminating mechanism by using high speed air valve to ensure the reliability of removing, elimination. The detection and elimination process does not block, do not smoke cigarettes, ensure smooth production; system parameter setting of humanization, brand switching operation simple and quick, clear color image, intuitive operation, convenient, and can automatically save the small image defects. Adjust the display interface, convenient operation; can set fault display and alarm functions, have data collection, statistical functions for statistics and analysis of the yield, elimination capacity. Software with independent intellectual property rights, can be based on customer demand for customized modifications, to ensure the function expansion and free lifetime upgrades.
