High rack warehouse (High rack storage) has been widely used in recent years to the tobacco industry, through increase the warehouse height, make full use of ground and space warehouse, reduce the occupied area, and effectively increase the storage capacity, improve the warehouse access mechanization, automation degree, improve the level of warehouse management. But it also brings difficult problems such as inventory, the danger of manual operation.

DGW-H100 elevated library automatic checking system is my company independent research and development based on the special machine vision to factory overhead library automatic checking system. The inventory of application of image recognition technology in tobacco goods, can realize accurate and convenient to achieve rapid inventory on the elevated inventory commodity real number. To ensure inventory accuracy, enterprises save a lot of cost and labor, improve production efficiency at the same time, reduce manual operation dangerous situation, effective prevention of accidents.

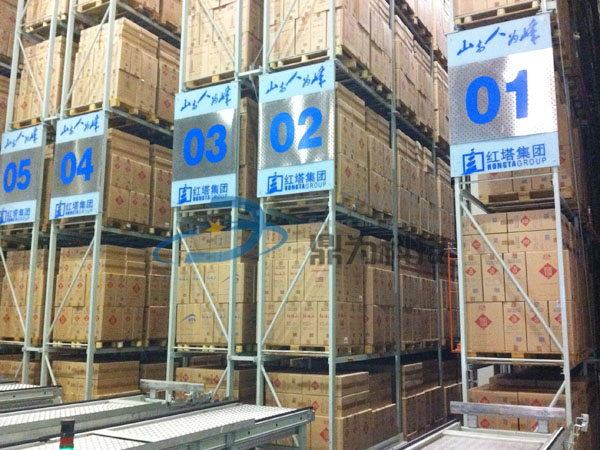

Elevated library site map:



1, the system composition and working principle:
Elevated library automatic checking system for finished cigarette elevated library automatic counting, number of cigarette brand, on each shelf coordinates corresponding statistic. Elevated library automatic checking system includes main control computer, image acquisition (including the camera), motion control system. Among them, the motion control system is the function of the control arm mounted camera along the elevated storage warehouse for scanning according to a predetermined track frame, for each each cargo pallets image signal acquisition, will coordinate the warehouse value together with the image is sent to the main control computer. The main control computer according to the image statistics of the shoot number, the coordinate position of goods brand, so as to realize the automatic checking overhead library.

The system principle diagram:


2, technical properties and parameters
DGW-H100 elevated library automatic checking system of stable operation, low failure rate. System parameter setting of human nature, friendly interface, simple and quick operation; can set fault display and alarm functions; software with independent intellectual property rights, can be based on customer demand for customized modifications, to ensure the function expansion and free lifetime upgrades.

Parameters:
1, automatic recognition and classification of smoke box brand, model and statistical summary; brand recognition accuracy rate of 100%, the number of pallets in the smoke box 100% accuracy;
Statistics the number 2, the tray box and determine the coordinate position.

3, the product after sale service
Our company is the tobacco industry professional equipment manufacturers and solution provider. Professional and continuous improvement is our aim, to improve the tobacco industry is our honor utility and mature products. Our company provides perfect after sale service for the use of factory. Also our company has been committed to improving the product, provide free product upgrading and transformation.
