Technical scheme
1 visual CCD detection:
In the steady field conditions, the move to the positioning sensors trigger imaging industrial camera, by using a two-step imaging method to collect the box cover image four angles, to transmit the image collected by 1394 bus to the processing system, image processing by the image processing software for a specific result, treatment consists of industrial control machine conveyor corrective orders.

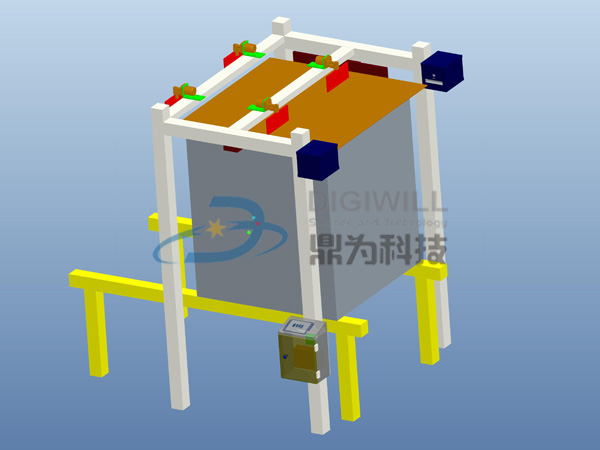

The 2 part of the box cover rectifying system:
Machine vision processing system sends the processing result, correcting region by positioning sensor location box arrived, logic control board control to perform corrective mechanism of launch, push the cover off the box cover in the error correcting mechanism will move to the right position, until the box cover.
Quality, construction period and after sale service commitment to the book
Our commitment to provide the following quality and construction period guarantee and

breach of promise:
1.1 our company to ensure the products are qualified products new. In the warranty period is quality reasons affecting the normal use, the company will replace any new qualified products.
1.2 installation time is 1 days /3, debugging time for 1 /3 days; and in 15 days to complete the debugging.
Our company promises to provide after sale service guarantee:
2.1 I promise from the date of acceptance, provide one year free warranty, the warranty expires to provide life-long maintenance repair service, and provide free software update service.
2.2 I will provide perfect after sale service, giving a response within 12 hours of receiving notice from the equipment failure within 48 hours, give the solution.
Train.
3.1 equipment commissioning will be completed on the relevant technical staff to carry out technical training.
The technical requirements, installation, acceptance
The technical requirements
1.1 Hardware: using LED light source, long service life and stable performance; the brand of IPC performance is stable and reliable and touch screen. Hardware installation layout is reasonable, beautiful and generous.
1.2 mechanical: precision control of mechanical transmission, error correcting mechanism with anti blocked control and alarm.
1.3 software: image processing software is easy to use, stable reliability, expansibility, friendly interface, image storage function.
The box cover is no more than the detection rate was 100%, false positive rate is 0.01%
The box cover and the box body position change detection rate of 100% and false detection rate was 0.01%
The box cover askew, body position change detection rate was 99.5%

Installation
Without affecting the production circumstances, the box cover position change detection system, a box cover correction system will schedule the installation, debugging.
Detection system installation, all in accordance with the workshop practice.
Our company is responsible for product installation, debugging.

Check before acceptance
The box cover detection system installation, debugging will be completed on the performance index are tested, changes in the box cover position detection system issued corrective instruction is driven correction system, to cover the crooked box cover to rectify the deviation, which moved to the appropriate location. To submit inspection report.
